Form

Purpose

EDM AutoSync Client

Bidirectional synchronization between Rig and Regional EDM databases.

Daily General Data

Rig Supervisor's summary of the drilling or well services operation. In the office, the Operations Engineer or Manager can examine this section and review the main details of the operation.

Cost Data

Record the actual costs associated with a Well during the drilling or completion operation.

 and

Safety Data

Information on Safety, Inspections, Incidents and Tests.

Time Summary Data

A sequential record of the actual activities performed for a given report time interval.

Non-Productive Time (NPT) Data

Record incidents that occur during a Rig Operations that involve equipment failure or lost time (referred to as NPT).

Environmental Data

Information on the monitoring of dirty fluids at the Well so as to avoid environmental damage, as well as tracking drill cuttings generated daily and the when where and how much of any spills that occur.

or

Fluid Handling Data

Information on daily mud losses, mud usage and mud volumes.

Weather Data

Collect environmental weather conditions on land or offshore rigs.

Mud Data

Information on mud inventory, checks, geology, carbide lag chromatography, gas peak, mud gas and lithology intervals on a daily basis.

Survey Data

Record wellbore trajectory information that assists engineers in determining the position and direction of the wellbore.

Leak Off Test Data

Record leak off tests and formation integrity tests for selected Hole Sections.

Bulks Data

An ongoing inventory of bulk products used at the Rig.

Other Daily Details Data

Rig Activity, Notifications, Underbalanced / Air Drilling, Daily Equipment, Arrive / Depart Checklist.

Daily Workover Fluids Data

Track Oil, Water and Other fluids injected, produced and non-recoverable volumes, to determine the volume of fluids in tanks and fluids to be recovered.

Personnel Data

Track information on various operator and service companies and their employees presence at the well site.

Support Craft Data

Record support crafts arriving to or departing from the Site, as well as craft remaining on location over the duration of the day.

Valve Tests

Track tests performed on gas lift valves and sub-surface safety valves.

or

Cementing Data

Record detailed information for each cement job performed on the Well.

or

Logging Data

Capture the activities and results of a wireline logging operation in which one or more suites of logging tools are lowered into a borehole and then retrieved from the hole while recording formation and wellbore properties.

or

Stimulations Data

Capture information related to any chemical or fracture stimulation treatment performed on the Well.

or

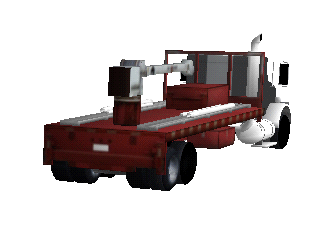

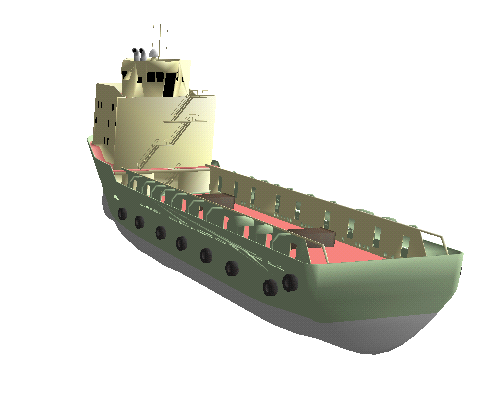

Materials Transfer Data

Track the movement of equipment and other materials on and off location.

Casing Data

Define and track casing assemblies run downhole.

or

Pipe Tally Data

Track drill pipe, casing and tubing information as the equipment arrives at the rig or is run into the hole.

Down Hole Image

Form

Purpose

BOP Data

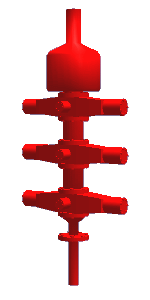

Records information regarding the identity and properties of a blow out preventer used on a well site. BOP data is accessed by clicking the red BOP.

Hole Sections Data

• record wellbore geometry as drilled during construction of a Well

• record Drilling and Casing phase data used to derive lengths for Technical Limit performance rate calculations

• record "Open Hole" intervals used to draw the wellbore schematics in OpenWells and PROFILE

• record hole section data copied to WELLPLAN when creating an "OpenWells Case"

• parent FIT/LOT data entry, that is without a hole section in OpenWells FIT/LOT data cannot be entered

• and optionally auto-populate annular and string volumes on the Fluid Handling form.

BHA and Bit Data

Build the components that make up the BHA, including the drillstring and bit. In addition, this form also records operation performance information.

Coring Data

Record the lithological properties of any core or sidewall recovered for each run.

Gravel Pack Data

Captures information on the gravel pack operation and equipment, such as screen details, carrier fluid/sand and pumping parameters.

Perforation Data

Record all aspects for a perforation job from the initial well conditions to details for all perforation intervals, including the total number of shots.


Form

Purpose

Anchor Data

Records information regarding the identity and properties of an anchor used on a well site.

Boiler Data

Records information regarding the identity and properties of a boiler used on a well site.

Centrifuge Data

Records information regarding the identity and properties of a centrifuge used on a well site.

Degasser Data

Records information regarding the identity and properties of a degasser used on a well site.

Hydrocyclone Data

Records information regarding the identity and properties of a hydrocyclone used on a well site.

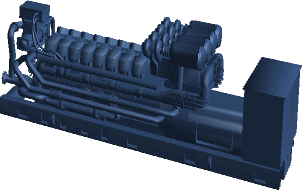

Motor Data

Records information regarding the identity and properties of a motor used on at the well site.

Pit Data

Records information regarding the identity and properties of a pit used on at the well site.

Pump Data

Records information regarding the identity and properties of a pump used on at the well site.

Shaker Data

Records information regarding the identity and properties of a shaker and shaker screens used on at the well site.
