Rig Data

Interactive Well Site

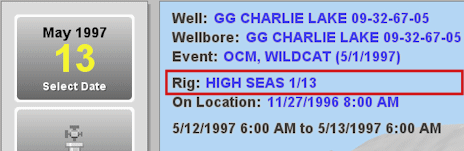

The current Rig's properties are defined in the Rig Properties dialog. This dialog is accessed by clicking on the blue Rig hyper link, located in the upper right corner of the well site canvas.

The Rig Properties dialog allows users allows users to add, review, modify and delete Rig data. The information found in this dialog is ready-only to users without the appropriate permissions to edit a rig.

Note: Rigs can be created from the Interactive Well Site during the Associate a Rig process. For information on creating a new Rig, see the Define the Rig and Rig Operation topic.
